A Bit of History

Practical solutions built on turbomachinery heritage.

Steam turbines and gas turbines grew from different engineering problems, different working fluids, and different cycles. Together, the Rankine and Brayton families now sit at the heart of many of the complex turbomachinery packages used in power generation and process industries.

From prime movers to packaged systems

The Steam Turbine

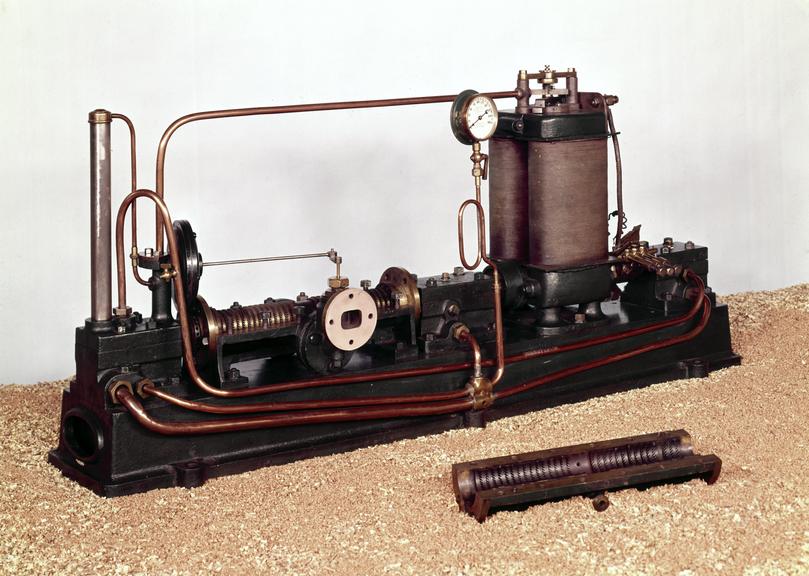

Historic Parsons steam turbine generator from 1884
Parsons' 1884 steam turbine generator (Science Museum Group Collection).
  1. 1859

    The Rankine cycle becomes the steam-power reference

    William John Macquorn Rankine described the thermodynamic cycle used as a standard for steam-power installations, where a condensable vapor is heated, expanded to produce work, condensed, and pumped back to pressure (Encyclopaedia Britannica).

  2. 1884

    Parsons makes the modern steam turbine practical

    Sir Charles Algernon Parsons developed a practical multi-stage steam turbine, using many stages in series so the steam could release energy in smaller steps instead of forcing one blade row to absorb the full drop (Encyclopaedia Britannica).

  3. 1900s

    Central stations scale the machine

    As boilers, metallurgy, governors, condensers, bearings, and generators improved, steam turbines displaced many reciprocating engines and became the prime mover of large electric power stations. The Rankine cycle remained the organizing model for pressure, temperature, enthalpy drop, heat rate, and condenser performance.

  4. Today

    Steam turbines become part of wider thermal systems

    Modern steam turbines operate in fossil, nuclear, biomass, waste-heat, cogeneration, and combined-cycle plants. In a combined cycle, exhaust heat from a gas turbine is recovered in an HRSG to feed a Rankine bottoming cycle, linking field execution directly to both thermal performance and mechanical reliability. This is where Rankine & Brayton Technical Solutions LLC brings practical field expertise to complex turbomachinery packages, supporting installation and commissioning for power generation, combined-cycle, cogeneration, and process applications.

The Gas Turbine

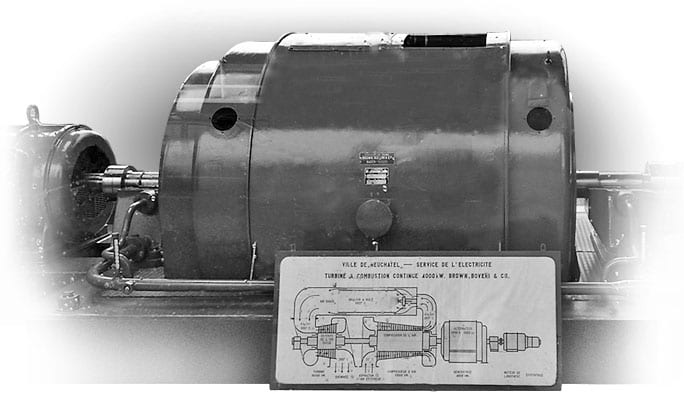

Historic 1939 Neuchatel gas turbine installation
1939 Neuchâtel gas turbine installation (POWER Magazine).
  1. 1870s

    The Brayton cycle defines continuous-flow heat addition

    The ideal Brayton cycle describes compression, constant-pressure heat addition, and expansion through a turbine. NASA explains that this cycle is used in all gas turbine engines and is a basis for predicting turbine-engine thermodynamic performance (NASA Glenn Research Center).

  2. Early 1900s

    Compressor and turbine efficiency limit early machines

    The gas turbine concept required at least a compressor, combustor, and turbine, but practical development was delayed by the difficulty of designing efficient compressors and turbines capable of producing useful net shaft work (Encyclopaedia Britannica).

  3. Mid 1900s

    Aviation accelerates the technology

    Aircraft gas turbines pushed axial compressor design, combustor stability, high-temperature materials, blade cooling, and lightweight package architecture. These same disciplines later supported aeroderivative industrial units used for power generation, compression, and process service.

  4. Today

    Heavy-duty and aeroderivative packages serve different missions

    Heavy-duty gas turbines are built for robust stationary duty, while aeroderivatives emphasize high power density, modularity, and operational flexibility. Both rely on the Brayton cycle, but their installation, auxiliary systems, package interfaces, commissioning logic, and field execution risks can be very different. This is where Rankine & Brayton Technical Solutions LLC brings practical field expertise to complex turbomachinery packages, supporting installation and commissioning for power generation, combined-cycle, cogeneration, and process applications.

Where Rankine & Brayton Technical Solutions fits

Rankine & Brayton Technical Solutions LLC is positioned for the installation and commissioning of complex turbomachinery packages, where thermodynamic intent must be translated into correct field execution. The name reflects both the steam-turbine and gas-turbine sides of modern power and process machinery.

Our focus is the practical interface between engineering, construction, vendor requirements, mechanical completion, alignment, commissioning procedures, package readiness, and site execution.

Example package scope

  • Steam turbines and Rankine-cycle auxiliary systems
  • Gas turbines, both aeroderivative and heavy-duty
  • Power generation, combined-cycle, and cogeneration packages
  • Process-industry turbine, compressor, and driven-equipment trains
  • Installation, alignment, commissioning, inspection, and readiness support
